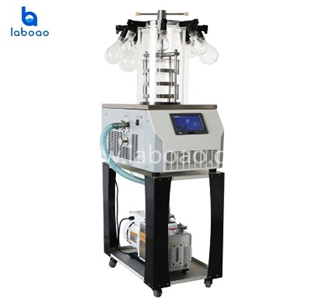

0.08㎡ Benchtop Manifold Top Press Lab Freeze Dryer
Is suitable for freeze-drying experiment in laboratory. It is bench top manifold top press equipment.
Description
| Model | LFD-10D |
| Freeze drying area | 0.08m2 |
| Condenser capacity | 3-4 L /24h |
| Condenser temperature | -55℃ (-80 ℃ optioanl) |
| Vacuum degree | < 10 Pa |
| Material tray | ¢180mm, 3 layers |
| Bulk capacity | 0.8 L, 10mm thickness |
| Vial capacity Φ12mm | 560 pcs |
| Vial capacity Φ16mm | 285 pcs |
| Vial capacity Φ22mm | 165 pcs |
| Style of press | By hand |
| Manifold | with 8 ports |
| Flask | 1000ml, 500ml, 250ml, 100ml |
| Cooling | Air，draughty,ambient temperature ≤25℃ |
| Voltage | 220V ,50 Hz; 110V, 50Hz; 110V, 60Hz |
| Power | 700W |
| Host dimension | 460*625*(370+465) mm |
| Host weight | 41 kg |
