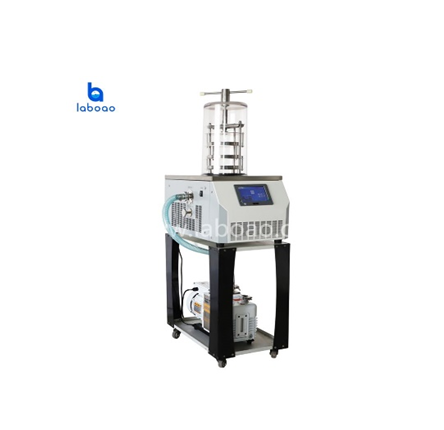

0.08㎡ Benchtop Press Laboratory Freeze Dryer
It is suitable for laboratory freeze-drying experiments. It’s an upper bench press kit.
Description
| Model | LFD-10A |
| Freeze drying area | 0.12㎡ |
| Condenser capacity | 3-4 L /24h |
| Condenser temperature | -55℃ (-80 ℃ optional) |
| Vacuum degree | < 10 Pa |
| Material tray | Ф200mm , 4 layers |
| Bulk capacity | 1.2L, 10mm thickness |
| Vial capacity Φ12mm | 920 pcs |
| Vial capacity Φ16mm | 480 pcs |
| Vial capacity Φ22mm | 260 pcs |
| Manifold | with 8 ports |
| Flask | 1000ml,500ml ,250ml ,100ml |
| Cooling | Air，draughty , ambient temperature≤25℃ |
| Voltage | 220V ,50 Hz; 110V, 50Hz; 110V, 60Hz |
| Power | 700W |
| Dimension | 460×625×(370+465) mm |
| Host weight | 41 kg |
