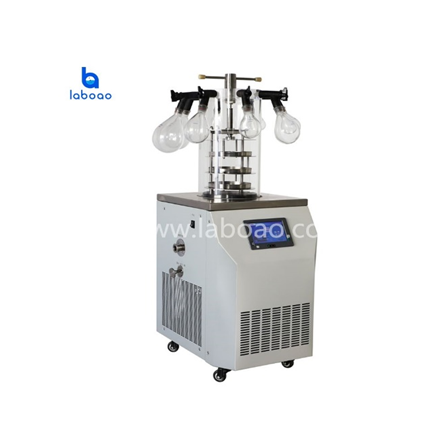

0.08㎡ Vertical Manifold Top Press Lab Freeze Dryer
Is suitable for freeze-drying experiment in laboratory. It is bench top manifold top press equipment.
Description
| Model | LFD-12D |
| Freeze drying area | 0.08m2 |
| Condenser capacity | 3-4 L /24h |
| Condenser temperature | -55℃ (-80 ℃ optional) |
| Vacuum degree | < 10 Pa |
| Material tray | ¢180mm, 3 layers |
| Bulk capacity | 0.8L, 10mm thickness |
| Vial capacity Φ12mm | 560 pcs |
| Vial capacity Φ16mm | 285 pcs |
| Vial capacity Φ22mm | 165 pcs |
| Style of press | By hand |
| Manifold | with 8 ports |
| Flask | 1000ml, 500ml, 250ml, 100ml |
| Cooling | Air, draughty, ambient temperature≤25℃ |
| Voltage | 220V, 50Hz |
| Power | 750W |
| Host dimension | 556*460*(720+465) mm |
| Host weight | 62 kg |
