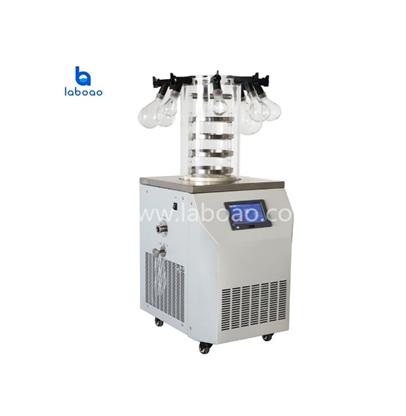

0.12㎡ Vertical Manifold Lab Freeze Dryer
Is suitable for freeze-drying experiment in laboratory. It is bench top manifold equipment.
Description
| Model | LFD-12C |
| Freeze drying area | 0.12㎡ |
| Condenser capacity | 3-4 L /24h |
| Condenser temperature | -55℃ (-80 ℃ optional) |
| Vacuum degree | < 10 Pa |
| Material tray | Ф200mm , 4 layers |
| Bulk capacity | 1.2L, 10mm thickness |
| Vial capacity Φ12mm | 920 pcs |
| Vial capacity Φ16mm | 480 pcs |
| Vial capacity Φ22mm | 260 pcs |
| Manifold | with 8 ports |
| Flask | 1000ml,500ml ,250ml ,100ml |
| Cooling | Air，draughty,ambient temperature≤25℃ |
| Voltage | 220V, 50Hz |
| Host dimension | 556×460×(720+465) mm |
| Power | 750W |
| Host weight | 62 kg |
