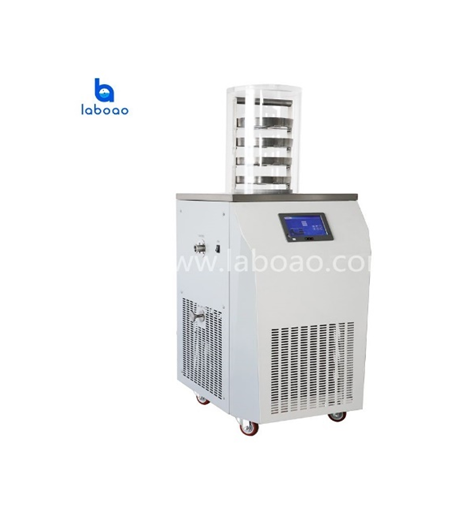

0.18㎡ Normal Lab Freeze Dryer
Is Suitable for freeze-drying of bulk (liquid, pasty, solid) conventional materials
Description
| Model | LFD-18A |
| freeze drying area | 0.18㎡/0.27㎡ |
| tray size | Ф240mm |
| No. of tray | 4pcs/6pcs |
| tray spacing | 70mm |
| cold trap temperature | ≤-56C，optional≤-80℃ |
| cold trap dept | 400mm |
| cold trap dia. | Ф270mm |
| ice collecting capacity | 6kg/24h |
| pumping speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| weight | 105kg |
| main unit dimensions | 630×580×970mm |
| -80℃ main unit dimensions | 810×580×950mm |
| drying chamber size | Ф300×445mm |
| cooling mode | wind cooled |
| defrosting mode | air cooled |
| shipping weight | 1.8L/2.7L（thickness 10mm） |
