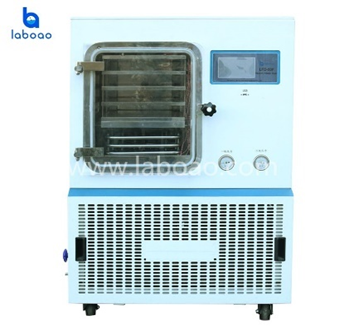

0.7㎡ silicone oil heating lyophilizer
It is suitable for freeze drying of conventional materials in bulk (liquid, paste, solid).
Description
| Model | LFD-50FA |
| Freeze-drying area | 0.7m2 |
| Material plate size | 475 × 355mm |
| Number of material trays | 4 |
| Shelf size | 480 × 360mm |
| Number of shelves | 4+1 floors |
| Shelf spacing | 50mm |
| Shelf temperature range | -55 ° C ~ +70 ° C |
| Shelf temperature difference | ±1 °C (balanced) |
| Cold trap temperature | ≤ -75 ° C (no load) |
| Water catching capacity | ≥10KG/24h |
| Pumping rate | 8L/S |
| Ultimate vacuum | ≤5pa (no load) |
| Installed power | 5500w |
| Host weight | 600kg |
| Mainframe dimensions | 1000×785×1420mm |
| Cooling method | air cooling |
| Plate loading material | 7L (material thickness 10mm) |
