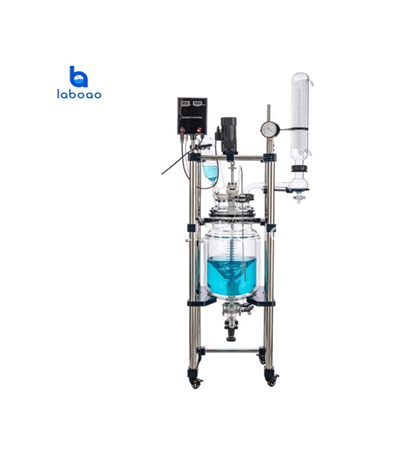

10L jacketed glass reactor
Is mainly used for enrichment of large-volume sample or preparation (such as drug screening, hormone analysis, liquid phase, and mass spectrometry in the analysis of sample preparation). Working principle: the nitrogen into the heated surface of the sample and make the solvent t evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen.
Description
| Model | LGR-10L |
| Glass Material | GG-17 |
| Frame Material | 304 Stainless steel |
| Moving mode | Brake type universal corner wheel |
| Reaction bottle capacity | 10L |
| Jacketed Capacity | 6L |
| Flanged out of the oil circulation port | Low feed high outlet |
| Reaction bottle cover port | 6ports |
| Discharge port distance to ground | 450mm |
| Temp. range | -80-250°C |
| Vacuum | 0.098Mpa |
| Stirring speed | 0-450rpm |
| Stirring diameter | 12mm |
| Stirring power | 90W |
| Voltage(V/Hz) | 220V/50Hz |
| Dimension(mm) | 520*520*2000 |
| Packing size(mm) | 1370*590*800 |
| Packing weight（KG） | 68 |
