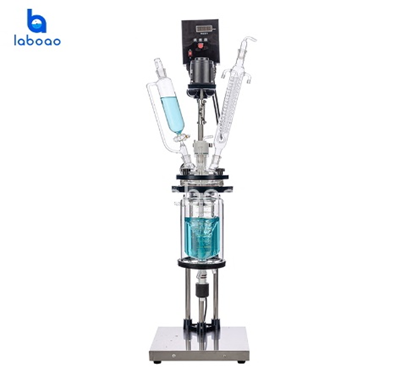

1L jacketed glass reactor
High borosilicate glass reactor vessels with bottom valve；Glass dome with ports for inlet, solid feed, vacuum, etc；PTFE coated stirrer, mechanical seal；Adjustable speed stirrer drive；CE and ISO certificate.
Description
| Model | LGR-1L |
| Glass Material | GG-17 |
| Frame Material | 304 Stainless steel |
| Reaction bottle capacity | 1L |
| Jacketed Capacity | 0.4L |
| Flanged out of the oil circulation port | Low feed high outlet |
| Reaction bottle cover port | 5 ports |
| Discharge port distance to ground | 30mm |
| Temp. range | -80~250℃ |
| Vacuum | 0.098Mpa |
| Stirring speed | 0-800rpm |
| Stirring diameter | 8mm |
| Stirring power | 40W |
| Power(V/HZ) | 220V 50HZ |
| Dimension(mm) | 350*345*1000 |
| Packing size(mm) | 1200*480*400 |
| Packing weight(KG) | 32 |
| Other related models | |
| • 2L jacketed glass reactor • LGR-2L • 3L jacketed glass reactor • LGR-3L • 5L jacketed glass reactor • LGR-5L |
|
