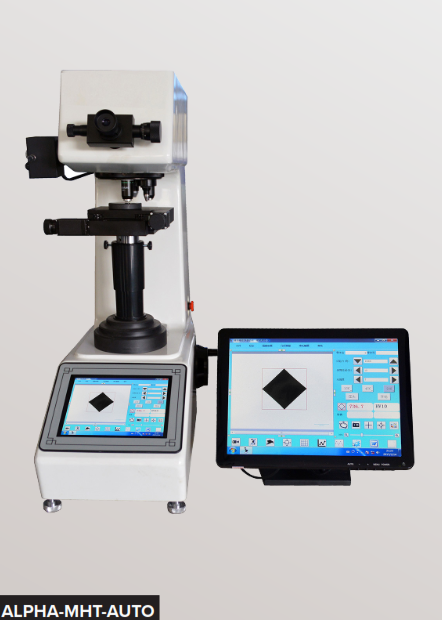

ALPHA-MHT-AUTO Automated Microhardness Tester
Automated Microhardness Testing
The Automated Microhardness Testing system is designed to provide a precise and efficient solution for measuring the hardness of small materials. It uses Vickers or Knoop hardness methods, suitable for a wide range of applications. The auto-turret system allows for easy test changeover, ensuring an uninterrupted process.
The tester features an adjustable load range from 10 to 1000 grams, making it capable of testing materials with different hardness levels. With an adjustable dwell time between 0 and 60 seconds, it is ideal for controlled and precise testing. The maximum sample height is 6.7 inches (170 mm), allowing for larger sample sizes.
The X-Y anvil travel range of 4.3 x 4.3 inches (110 x 110 mm) ensures adequate coverage for testing samples in various positions. Additionally, the automatic hardness conversion to other scales, such as HRA, HRB, HRC, HV, HK, HBW, and more, adds versatility to the measurements. Its robust and durable design ensures continuous and reliable performance over time.
Description
| Description/Feature | Details |
|---|---|
| Automated Microhardness Testing | Automated system for microhardness testing. |
| Vickers or Knoop | Vickers or Knoop hardness methods available for precise measurements. |
| Auto-turret | Automatic turret system for easy test changeover. |
| Load range 10-1000 grams | Adjustable load range from 10 to 1000 grams for hardness testing. |
| Scales (HV, HK) | Vickers (HV) and Knoop (HK) hardness scales available. |
| Dwell time 0-60 seconds | Adjustable dwell time between 0 and 60 seconds for performing tests. |
| Maximum sample height 6.7 inches (170 mm) | Maximum sample height for testing: 6.7 inches (170 mm). |
| X-Y Anvil travel range 4.3 x 4.3 inches (110 x 110 mm) | X-Y anvil travel range: 4.3 x 4.3 inches (110 x 110 mm). |
| Auto hardness conversion to other scales | Automatic conversion of results to other scales such as HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW, etc. |
| Robust and durable design | Sturdy and durable construction for long-lasting performance. |
