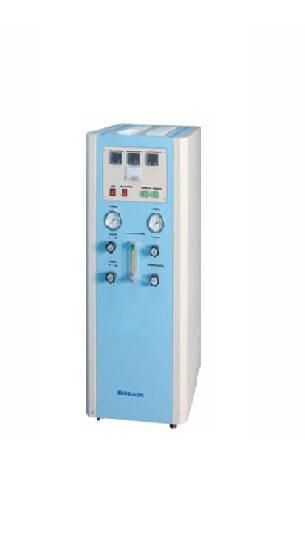

Argon Gas Purifier
It can purify the ordinary pure argon to be high-purity argon gas, widely used in electronics,metallurgy, machinery, chemical, atomic energy and other economic sectors, provide high-purity argon gas for spectral analysis and scientific research.
Description
| Model | BKAP-4C | |
| Original Gas Demand | Purity | ≥ 99.9% |
| Impurity Content | O2<1000ppm;H2O<1000ppm | |
| Output Gas Purity | Purity | ≥ 99.999% |
| Impurity content | O2≤0.5PPm；H2O≤1PPm(Dew point≤-76℃)； | |
| CO+CO2≤0.1PPm；S,P Oxides≤0.1PPm； | ||
| Number of dust particles(≥0.3μm)3-5s/L； | ||
| Operating Pressure | ≤0.8MPa | |
| Max Flow Rate | ≤60L/min | |
| Flow Rate Of Regenerating Argon | 500 ml/min | |
| Regenerating Temperature Of The Absorber | 400±20℃ | |
| Work Temperature Of The Reactor | 300±20℃ | |
| Optional Accessory | N2 removal tower | |
| Power Supply | AC110/220V±10%, 50/60Hz | |
| Consumption | 1600W | |
| External Size (W*D*H) mm | 420*600*1230 | |
| Package Size (W*D*H) mm | 510*710*1300 | |
| Net Weight(kg) | 135 | |
| Gross Weight(kg) | 170 | |
