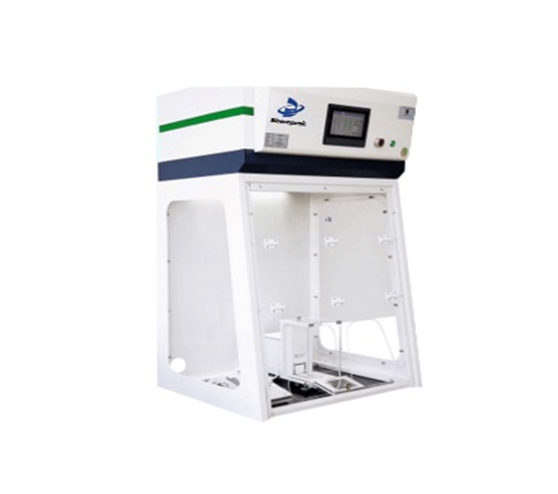

Ductless Fume Hood, FMH Series
1) 99.995% high efficiently filtering
2) Advanced VOC Detector port
3) LED touch screen control system
4) Silent turbine fan
5) Explosion proof lighting system
6) Transparent acrylic glass>6mm thickness
Description
| Model | Specification | Configure (customized) | Optional parts |
| FMH-800 | External Dimension: | Filters(pcs): 4 | Fixed cart |
| 800×620×1245mm | Pre-filters(pcs): 2 | Movable Cart | |
| Internal Dimension: | Fans(pcs): 1 | Anemometer | |
| 764×540×860mm | Light ：YES | Stainless steel table | |
| Air Capacity: 230 m³/h | Display screen: YES | Epoxy resin board | |
| Face velocity: 0.4-0.6 m/s | Worktable: Epoxy resin board | ||
| Voltage: 220V-240V | Power cord(pcs): 1 | Filter Model: | |
| Frequency: 50-60Hz | Control systerm(unit): 1 | SFGL OG: Organic filter | |
| Power: 42W | Alarm system: YES | SFGL AG: Inorganic filter | |
| Rated currents: 2A | SFGL FO: Formaldehyde filter | ||
| Sound Emission : 40-52 dBA | SFGL AM: Ammonia filter | ||
| Operation hole: Triangle/ Trapezoid | SFGLH14: HEPA filter | ||
| FMH-1000 | External Dimension: | Filters(pcs): 4 | Fixed cart |
| 1000×620×1245mm | Pre-filters(pcs): 2 | Movable Cart | |
| Internal Dimension: | Anemometer | ||
| 971×512×885 mm | Fans(pcs): 1 | Stainless steel table | |
| Air Capacity: 230 m³/h | Light: YES | Epoxy resin board | |
| Face velocity: 0.4-0.6m/s | Display screen: YES | ||
| Voltage: 220V-240V | Worktable: | Filter Model: | |
| Frequency: 50-60Hz | Epoxy resin board | SFGL OG: Organic filter | |
| Power : 42W | Power cord(pcs):1 | SFGL AG: Inorganic filter | |
| Rated currents: 2A | Control system(unit): 1 | SFGL FO: Formaldehyde filter | |
| Sound Emission :40-52 dBA | Alarm system:YES | SFGL AM: Ammonia filter | |
| Operation hole:Triangle/ Trapezoid | SFGL H14: HEPA filter | ||
| FMH-1300 | External Dimension: | Filters(pcs): 6 | Fixed cart |
| 1275×620×1245mm | Pre filters(pcs): 3 | Movable Cart | |
| Internal Dimension: | Anemometer | ||
| 1172×522×866mm | Fans (pcs): 2 | Stainless steel table | |
| Air Capacity: 460 m³/h | Light: YES | Epoxy resin board | |
| Face velocity: 0.4-0.6m/s | Display screen: YES | Filter Model: | |
| Voltage: 220V-240V | Worktable: | SFGL OG: Organic filter | |
| Frequency: 50-60Hz | Epoxy resin board | SFGL AG: Inorganic filter | |
| Power: 84W Rated currents:2A | Power cord (pcs): 1 | SFGL FO: Formaldehyde filter | |
| Sound Emission : 40- 52 dBA | Control system(unit):1 | SFGL AM: Ammonia filter | |
| Operation hole: Triangle/ Trapezoid | Alarm system: YES | SFGL H14: HEPA filter | |
| FMH-1600 | External Dimension: | Filters(pcs): 6 | Fixed cart |
| 1600×620×1245mm | Pre filters (pcs): 3 | Movable Cart | |
| Internal Dimension: | Fans (pcs): 3 | Anemometer | |
| 1572×522×866mm | Light: YES | Stainless steel table-board | |
| Air Capacity: 690 m³/h | Display screen: YES | Epoxy resin board Filter Model: SFGL OG: Organic filter | |
| Face velocity:0.4-0.6 m/s | Worktable: | SFGL AG: Inorganic filter | |
| Frequency : 50-60 Hz | Epoxy resin board | SFGL FO: Formaldehyde filter | |
| Power: 110W Rated currents: 5A | Power cord (pcs): 1 | SFGL AM: Ammonia filter | |
| Sound Emission : 40-52 dBA | Control system(unit):1 | SFGL H14: HEPA filter | |
| Operation hole: | Alarm system: YES | ||
| Triangle Trapezoid | |||
| FMH-1600A | External Dimension: | Filters (pcs): 6 | Fixed cart |
| 1600×790×1245mm | Pre filters (pcs): 3 | Movable Cart | |
| Internal Dimension: | |||
| 1497×692×1014mm | Fans (pcs): 3 | Anemometer | |
| Air Capacity: 690 m³/h | Light: YES | Stainless steel table-board | |
| Face velocity: 0.4-0.6m/s | Display screen: YES | Epoxy resin board | |
| Voltage: 220V-240V | Worktable: | Filter Model: | |
| Epoxy resin board | SFGL OG: Organic filter | ||
| Frequency: 50-60Hz | Power cord (pcs): 1 | SFGL AG: Inorganic filter | |
| Power: 110W | SFGL FO: Formaldehyde filter | ||
| Rated currents: 5A | Control system(unit): 1 | SFGL AM: Ammonia filter | |
| Sound Emission : 40-55dBA | Alarm system: YES | SFGLH14: HEPA filter |
