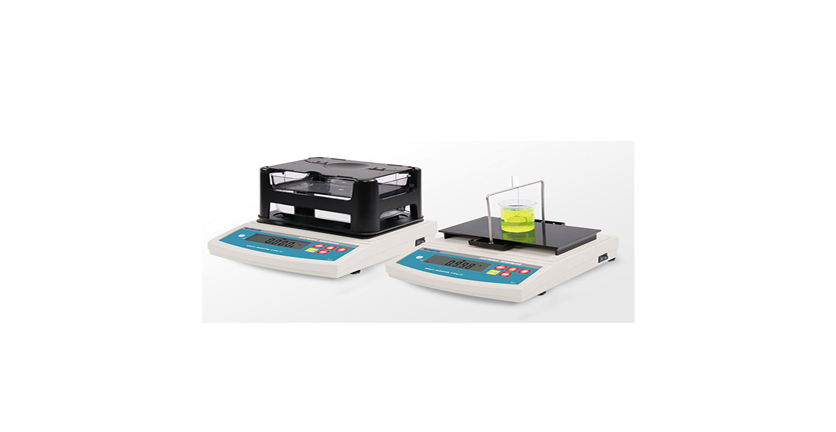

High-precision Solid and Liquid Densimeter
Description
| Model | BK-DMH120D | BK-DMH300D | |
| Capacity | 0.001~120g | 0.005~300g | |
| Density Resolution | 0.0001g/cm3 | 0.001g/cm3 | |
| Density Range | 0.0001~99.9999g/cm3 | 0.001~99.999g/cm3 | |
| Measuring Time | About 5s | ||
| Solid Mode | Measuring Principle | Archimedes principle | |
| Measurable Items | Density of general non-absorbency solid. Density of porosity materials. Oil length of | ||
| oil bearing. Porosity of porosity materials. DIN volume abrasion loss of rubber. | |||
| Powder density. Water absorption rate. | |||
| Specific Gravity | Unibody injection forming professional specific gravity measurement frame | ||
| Size: 135*50*116mm (L*W*H) | |||
| Measuring Frame Measuring Tank | Unibody injection forming transparent professional measuring tank | ||
| Size: 169*98*83mm (L*W*H) | |||
| Mixed Material | Function | Automatically read the percentage of the main material in composite | |
| Percentage | Introduction | which consist of two materials | |
| Setting | Freely set the density value of main material and subordinate material | ||
| Display | Density value, percentage of main material | ||
| Liquid Mode | Measuring Principle | Archimedes principle displacement method | |
| Weight Value Data | 3 groups | ||
| Storage | |||
| Specific Gravity | Stainless steel specific gravity measuring frame | ||
| Measuring Frame | |||
| Result Display | Density and Baume value | ||
| Result Testing Method | Distilled water testing | ||
| Calibration Mode | Auto correction, auto detection. | ||
| Standard Accessories | Common Use: Tweezer, thermometer, 100G weight, windshield, power transformer. Solid Use: Tank, testing board, a set of particle measuring assembly, a set of floating body measuring assembly. Liquid Use: Measuring plate, measuring frame, DE-20A standard liquid measuring assembly |
||
| Gross Weight(kg) | 4.5 | ||
.
| Other related models | ||
| Density meter for solids and liquids • BK-DME300D • BK-DME600D |
Liquid hydrometer • BK-DME300L |
Solid hydrometer • BK-DME300S • BK-DME600S |
