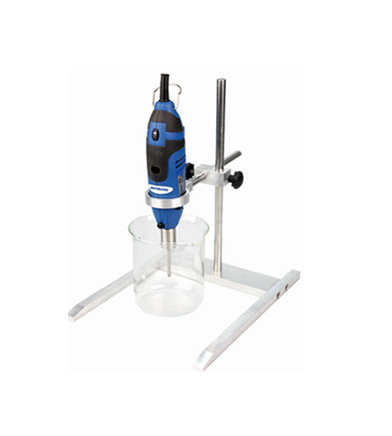

Homogenizer
Homogenizer is widely used in fields of Biotechnology, Human and veterinary medicine/ clinical medicine, Pharmaceutical industry, Cosmetics industry, Food industry, Petrochemistry, Paint and lacquer industry etc.
Description
| Model | BK-HG160 | BK-HG500 |
| Speed Range | 8000-30000rpm | 10000-30000rpm |
| Max. Circum. Speed | 6.3-14m/s | 22.7-36m/s |
| Speed Control | 6 stage is adjustable by knob | |
| Working Volume (H2O) | 0.1-50ml (Dispersing shaft DS-160/5) | 10-40000ml |
| 1-250ml (Dispersing shaft DS-160/10) | ||
| Max. Viscosity | 5000mPas | 10000mPas |
| Material of Dispersing Shaft | SS316 & PTFE seal ring | |
| Noise | ≤72dB | ≤79dB |
| Ambient Temp. | 0-40℃ | |
| Relative Humidity | 85%RH | |
| Protection Type | IP20 | |
| Consumption | 160W | 500W |
| Power Supply | AC110/220V±10%, 50/60Hz | |
| Standard Accessory | Base stand + DS-160/5 dispersing shaft | Base stand + DS-500/1 dispersing shaft |
| Or | Or | |
| Base stand + DS-160/10 dispersing shaft | Base stand + DS-500/2 dispersing shaft | |
| Package Size (W*D*H)mm | 400*200*150 | 820*350*90 |
| Gross Weight(kg) | 3 | 8.5 |
