ThermoTrace® BLE Infrared Thermocouple Probe Combo Thermometer Model: 15039-01

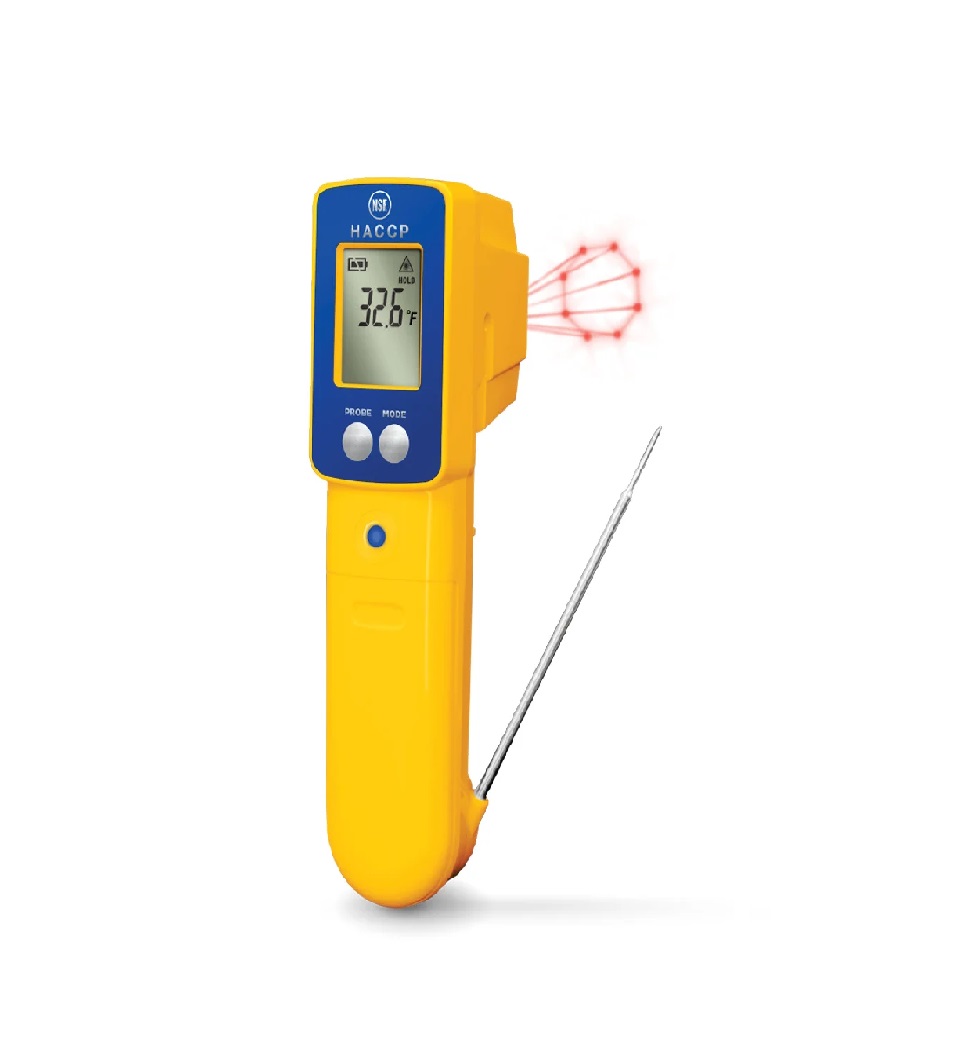

This device is a combined infrared and probe digital thermometer designed to accurately measure temperatures across a wide range (-76°F to 662°F / -60°C to 350°C). Its 8:1 optical field of view allows for non-contact measurement at a distance, using a multi-beam laser targeting system to enhance aiming precision. The integrated stainless steel probe allows for accurate internal temperature measurements.

It features rapid response time (<1 second), a display hold function (30 seconds), and 0.2°C resolution. Additional highlights include an adjustable emissivity range (0.1 to 1.00), IP54 protection against dust and splashes, and certifications including CE, NSF, and NIST traceability. Powered by two AAA batteries, it provides up to 207 hours of continuous use in contact mode. The built-in Bluetooth capability, based on the Nordic chipset, supports wireless monitoring in industrial, food service, or scientific environments.

Categories: ,

Description

Feature Specification
Field of View 8:1
Infrared Measurement Range (IR) -76°F to 662°F
Probe Measurement Range -76°F to 662°F
Operating Range 32°F to 122°F
Infrared Accuracy Object temperature (59°F to 95°F): ±1.1°FOutside range:-76°F to 0°F: ±(2°F + 0.1/°)0°F to 149°F: ±2°F149°F to 662°F: ±1.5% of reading
Probe Accuracy < 23°F: ±2°F23°F to 149°F: ±1°F>149°F: ±1% of reading
Response Time Less than 1 second
Display Hold Time 30 seconds
Display Resolution 0.5°F
Emissivity Range Factory set at 0.95; adjustable from 0.1 to 1.00 in 0.01 steps
Battery 2 x AAA batteries
Battery Life (IRT Mode) Typical 22 hrs; minimum 20 hrs (with laser)
Battery Life (COT Mode) Typical 207 hrs; minimum 200 hrs
Sighting Method Multi-beam laser
Dimensions 1.56 in x 2.12 in x 6.22 in (39.5 mm x 53.9 mm x 158 mm)
Weight (with batteries) 5.64 oz (160 g)
Probe Stainless steel, 3.74 in length, 0.067 in diameter
IP Rating IP54
Certifications CE, NSF, NIST traceable
Bluetooth Chipset Nordic nRF51822
Power Rating DC 1.8V to 3.6V
Operating Temp (Bluetooth) -22°F to 185°F
Storage Temp -40°F to 185°F
Humidity (Non-Operating) Max 95%
Frequency and Power (Bluetooth) 2402–2480 MHz; 40 channels; 3.0 mW
Quality Management System Manufactured under ISO 9001:2015 QMS
