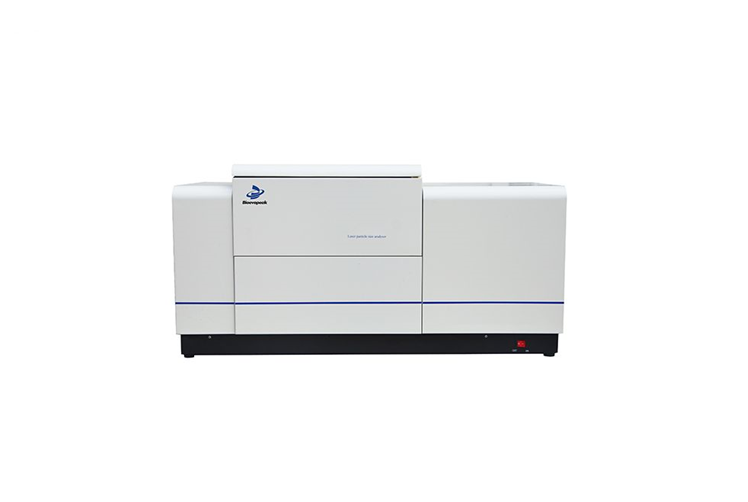

Intelligent Wet and Dry Laser Particle Size Analyzer, PSA-2L2308A
Description
| Model | PSA-2L2308A | |
| Measurment Standard | ISO 13320-1:2009,GB/T19007-2016,Q/0100JWN001-2013 | |
| Compliance with 21 CFR Part 11 | ||
| Measurment Principle | Laser diffraction principle | |
| Analysis | Mie and Fraunhofer scattering | |
| Detector Arrangement | Log-spaced array, test angle from 0.015 degree to 145 degree | |
| Measurment Range | Wet:0.01μm-2000 μm Dry: 0.1μm-2000μm | |
| Silicon Photodetectors | Wet:127PCS Dry:100 PCS | |
| Accuracy error | Wet<1% Dry<1% (CRM D50) | |
| Repeatability error | Wet<1% Dry<1% (CRM D50) | |
| Light sourceS | Dual lens, He-Ne laser P>3.0 MW (λ= 632.8nm) | |
| Auxiliary green semiconductor laser (λ= 405 nm) P＞2.0MW , | ||
| Laser Safety | Class 1 | |
| Wet dispersion | Ultrasonic | Frequency:40KHz Power:60W, Time: ≥1S |
| Stir | Revolutions Speed: 0-3000RPM (Adjustable) | |
| Circulate | Rated Flow:30L/min Rated Power:70W | |
| Sample tank | Volume:1000mL | |
| Micro- | Volume: 10mL ( Available) | |
| Sample cuvette | ||
| Dry dispersion | Dry-turbulence dispersion patent, normal shock wave shear technique | |
| Feeding Speed | Adjustable (Variable speed knob) | |
| Operation Mode | Full automatic / manual control, freely choose | |
| Dispersion medium | Compressed Air, pressure: 0 to 6 bar | |
| Optical bench alignment system | Full automatic, precision is up to 0.2um | |
| Measurment Time | Wet: ＜2 Min Dry : <1min Typical measuring time<10S | |
| Outer dimension(L*W*H) | 104×44×54cm | |
| Net Weight | 70Kg | |
