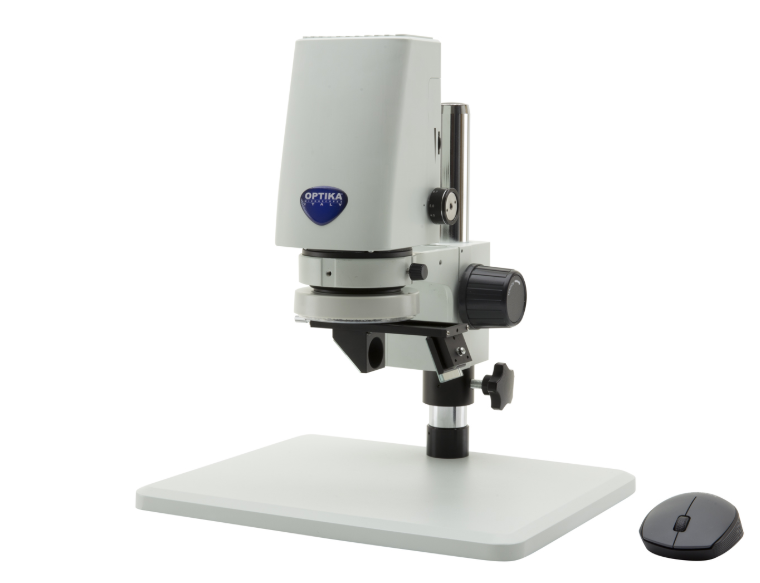

IS-01SMD Compact All-in-One Video Microscope with Integrated HDMI Camera
The OPTIKA IS-01SMD is a compact all-in-one video microscope with an integrated HDMI camera and built-in software, ideal for achieving high magnification and accurate measurements. With click-stop zoom positions, it ensures repeatability in inspections. Delivers 1080p Full HD images at 60 fps on an HDMI monitor, showing exactly what the microscope eyepieces see. The real-time 3D view, enabled by the 360° rotatable attachment and 7x–50x zoom, is perfect for PCB and medical device inspection. Its long working distance allows soldering and assembly while viewing on-screen. Built-in USB2.0 ports let users save images/videos without a PC. The integrated measurement software allows on-screen dimensional analysis.
Description
| FEATURE | DESCRIPTION |
|---|---|
| Observation method | Brightfield |
| Body construction | Plastic mold / aluminum gears |
| Optical system | 160 mm with anti-fungus treatment |
| Objective type | Achromatic, parfocal zoom |
| Working distance | 110 mm |
| Standard magnifications | 0.7x – 5x |
| Zoom ratio | 7.14 |
| Zoom click stops | 0.7x, 1x, 1.5x, 2x, 2.5x, 3x, 4x, 5x |
| Focusing system | Coarse, total travel 50 mm |
| Adjustable tension | Yes |
| Head holder internal diameter | 76 mm |
| Head type | Pillar, 32 mm diameter |
| Camera resolution | 2 MP |
| Sensor | CMOS, 1/2.8”, 16:9 aspect ratio |
| Full image size | 1920×1080 (Full HD) |
| Pixel size | 2.9×2.9 µm |
| Frame rate | 60 fps |
| Signal-to-noise ratio | >50 dB |
| Dynamic range | >50 dB |
| Sensitivity | 0.4 V/lux·s @550 nm |
| Exposure time | 0.02 – 1/10000 s |
| USB type | 2.0 |
| Software | Built-in |
| Incident illumination | LED, 1W, 60000 lux, color temperature 6300 K |
| Brightness control | Manual |
| LED lifetime | >65000 hours |
| Power supply | External, 12 VDC, multi-plug (EU/UK/US) |
| Maximum sample height | 150 mm |
| Product dimensions (H x W x D) | 510 x 320 x 260 mm |
| Weight | 4.3 kg |
| 3D Attachment | Swing-out, 360° rotatable |
