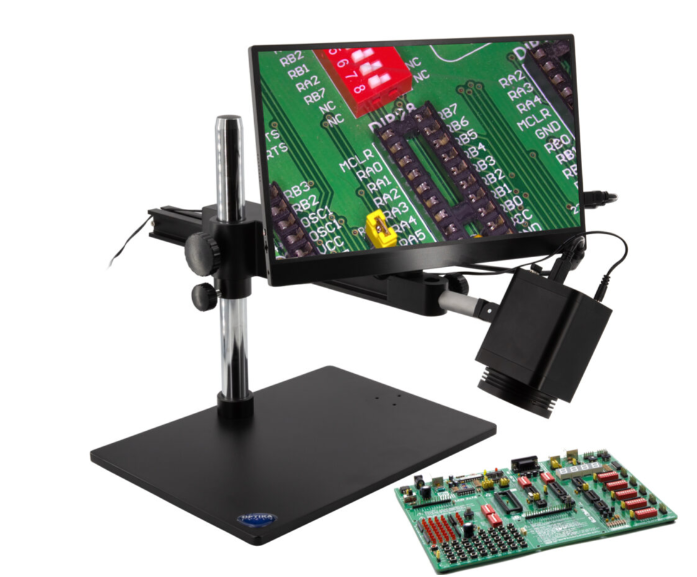

IS-4K2 Advanced Inspection System with 4K HDMI Camera and Optical Zoom
The IS-4K2 is an advanced inspection system designed for intensive use in quality control of electronics, mechanics, and other industrial components. It features an 8 MP SONY STARVIS HDMI camera with autofocus and 1x to 18x optical zoom, delivering crystal-clear 4K live video at 30 fps. The camera focuses instantly in under one second, and its working distance extends to infinity—ideal for inspecting multilayered objects. A 15.6” rotating and inclinable HDMI monitor provides ergonomic viewing, and all functions are controlled with a wireless mouse. Images and videos are saved to an SD card. The system includes a fully adjustable articulated boom stand (SZ-STL3X) for complete movement flexibility during inspection.
Description
| FEATURE | DESCRIPTION |
|---|---|
| System type | Advanced inspection system for intensive use |
| Recommended applications | Quality control in electronics, mechanics, and industrial applications |
| Camera | SONY STARVIS CMOS HDMI camera, 8 MP, autofocus |
| Camera resolution | 3840×2160 (4K UHD) |
| Sensor size | 1/2.8” |
| Zoom type | Optical zoom 1x–18x |
| Autofocus | Yes, instant focus in under 1 second |
| Shutter type | Rolling shutter |
| Pixel size | 1.45×1.45 µm |
| Frame rate (full resolution) | 30 fps @ 3840×2160 |
| Image format | 16:9 |
| HDMI output | Yes |
| WiFi output | Yes |
| Storage | SD card, transferable to other devices |
| HDMI monitor | LCD 15.6”, 360° rotating, freely inclinable |
| Monitor power supply | 5V / 4A |
| System control | Via wireless mouse |
| Working distance | Infinite focus |
| Stand | Articulated boom stand (SZ-STL3X), transversal & longitudinal movement |
| Max sample height | 270 mm (from bench) |
| Total stand height | 380 mm |
| Stand base (H x W x D) | 20 x 380 x 280 mm |
| Horizontal arm length | 460 mm (total) |
| Total weight of system | 7 kg |
| Adjustable tension | Yes |
| Head holder internal diameter | 76 mm |
| Pillar diameter | 32 mm |
| Included accessories | LED ring light, 0.3 m HDMI cable, wireless mouse, SD card, WiFi adapter |
| Camera dimensions (mm) | 80 x 80 x 116 |
| Camera weight | 0.68 kg |
| Camera power supply | 12V / 3A |
