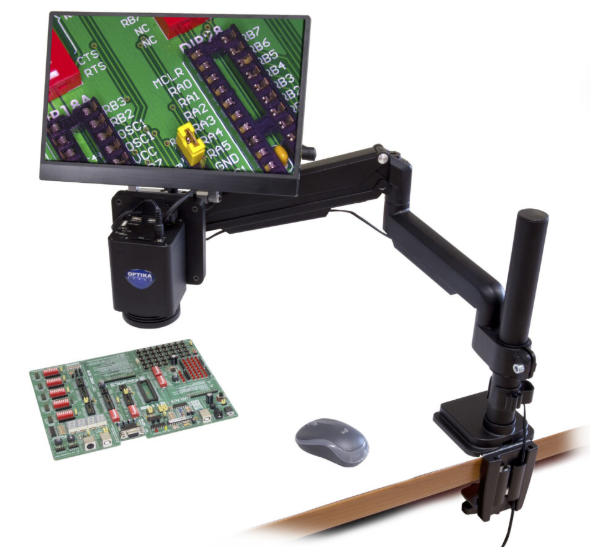

IS-4K3 Advanced Inspection System with Pantograph Arm and 4K HDMI Camera
The IS-4K3 is an advanced inspection system designed for intensive industrial use, ideal for quality control in electronics, mechanics, and other sectors. It features an 8 MP SONY STARVIS HDMI camera with 1x–18x optical zoom and autofocus, providing real-time 4K video at 30 fps with instant focusing. Its infinite working distance makes it perfect for inspecting large or multi-layered samples. The system includes a space-saving SZ-STL5 pantograph stand with a 737 mm reach, clamp-mounted for bench use. All functions are wirelessly controlled via mouse. Images and videos are saved to an SD card for easy transfer across devices.
Description
| FEATURE | DESCRIPTION |
|---|---|
| System type | Advanced inspection system for intensive use |
| Recommended applications | Quality control in electronics, mechanics, industrial inspection |
| Camera | SONY STARVIS CMOS HDMI camera, 8 MP, autofocus |
| Camera resolution | 3840×2160 (4K UHD) |
| Zoom type | Optical zoom 1x–18x |
| Sensor | 1/2.8” CMOS, STARVIS, rolling shutter |
| Autofocus | Yes, instant focus in under 1 second |
| Pixel size | 1.45×1.45 µm |
| Frame rate (full resolution) | 30 fps @ 3840×2160 |
| Image format | 16:9 |
| HDMI output | Yes |
| WiFi output | Yes |
| Storage | SD card, transferable to any device |
| HDMI monitor | 15.6” LCD, 360° rotating, freely inclinable |
| Monitor power supply | 5V / 4A |
| System control | Wireless mouse |
| Working distance | Infinite |
| Stand type | Pantograph-style arm, table clamping, 737 mm reach |
| Coarse travel | 50 mm |
| Adjustable tension | Yes |
| Head holder internal diameter | 76 mm |
| Pillar diameter | 35 mm |
| Stand dimensions (H x W x D) | 327 x 300 x 800 mm |
| System weight | 5.1 kg |
| Included accessories | LED ring light, HDMI cable (0.3 m), wireless mouse, SD card, WiFi adapter |
| Camera dimensions (mm) | 80 x 80 x 116 |
| Camera weight | 0.68 kg |
| Camera power supply | 12V / 3A |
