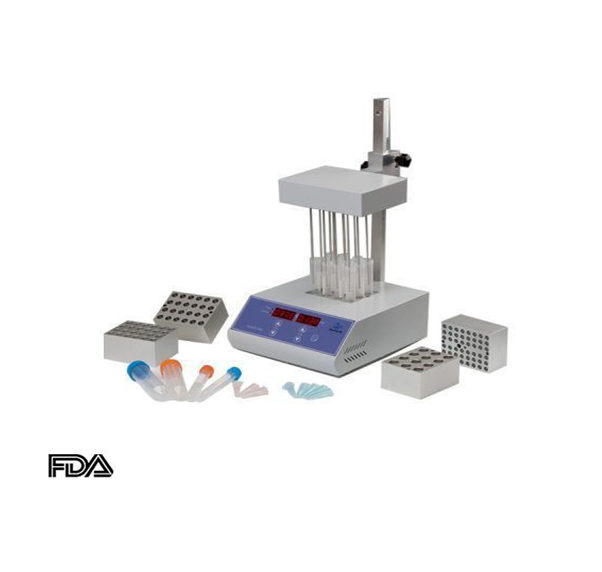

Sample concentrator, NEC160-1
Description
| Project | Parameters |
| Temp range | RT.+5°C -160°C |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Time Range | 1-99h59min/∞ |
| Heating time | ≤15min(from 25℃ to 160℃) |
| Needle length | 150mm |
| Max gas usage | 15L/min |
| Max gas pressure | 0.02Mpa(Gas pin≤ 16pcs) |
| 0.05Mpa(Gas pin＞1pcs) | |
| Block qty | 1 |
| Max power | 300W |
| Voltage | AC220V or AC110V/50~60Hz |
| Size | 260x220x450mm |
| Weight | 7.0kg |
| Model | Tube diameter | Tube quantity |
| MD03 | 10mm | 24 |
| MD04 | 12mm | 24 |
| MD05 | 13mm | 24 |
| MD06 | 15mm | 16 |
| MD07 | 16mm | 16 |
| MD08 | 19mm | 12 |
| MD09 | 20mm | 12 |
| MD10 | 26mm | 8 |
| MD11 | 28mm | 4 |
| MD12 | 40mm | 3 |
| MD15 | 1.5ml centrifuge tube | 24 |
| MD16 | 2.0ml centrifuge tube | 24 |
| Other related models | |
| • Sample Concentrator, NEC160-1A • Sample concentrator, NEC160-1V • Sample Concentrator, NEC160-2 • Sample concentrator, NEC160-2A • Water Bath Sample Concentration, NEC100-1 |
