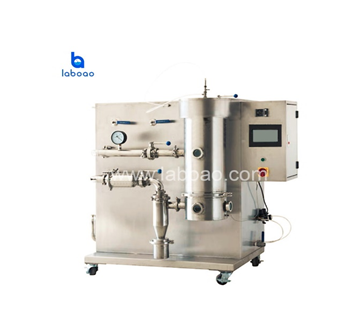

Vacuum spray freeze drying machine
Is an unconventional freeze drying technique that produces uniquely powdered products whilst still including the benefits of conventionally freeze dried products.
Description
| Model | SFD-3000 |
| Screen | LCD touch screen |
| Display data | Drying chamber temp., peristaltic pump speed, fan frequency, needle frequency, drying chamber pressure |
| Capacity | 1000ml/time |
| Spray freezing temp. | <-15℃ |
| Trap temp. | ≤-60℃ |
| Vacuum pump power | 2KW |
| Vacuum pressure | <20Pa (No load) |
| Spraying pressure | 2-5BAR (adjustable) |
| Compressor air flow volume | 4.2M3/h |
| Cool air volume | 5.5M3/min |
| Weight | 110kg |
| Size | 1100*850*1500mm |
