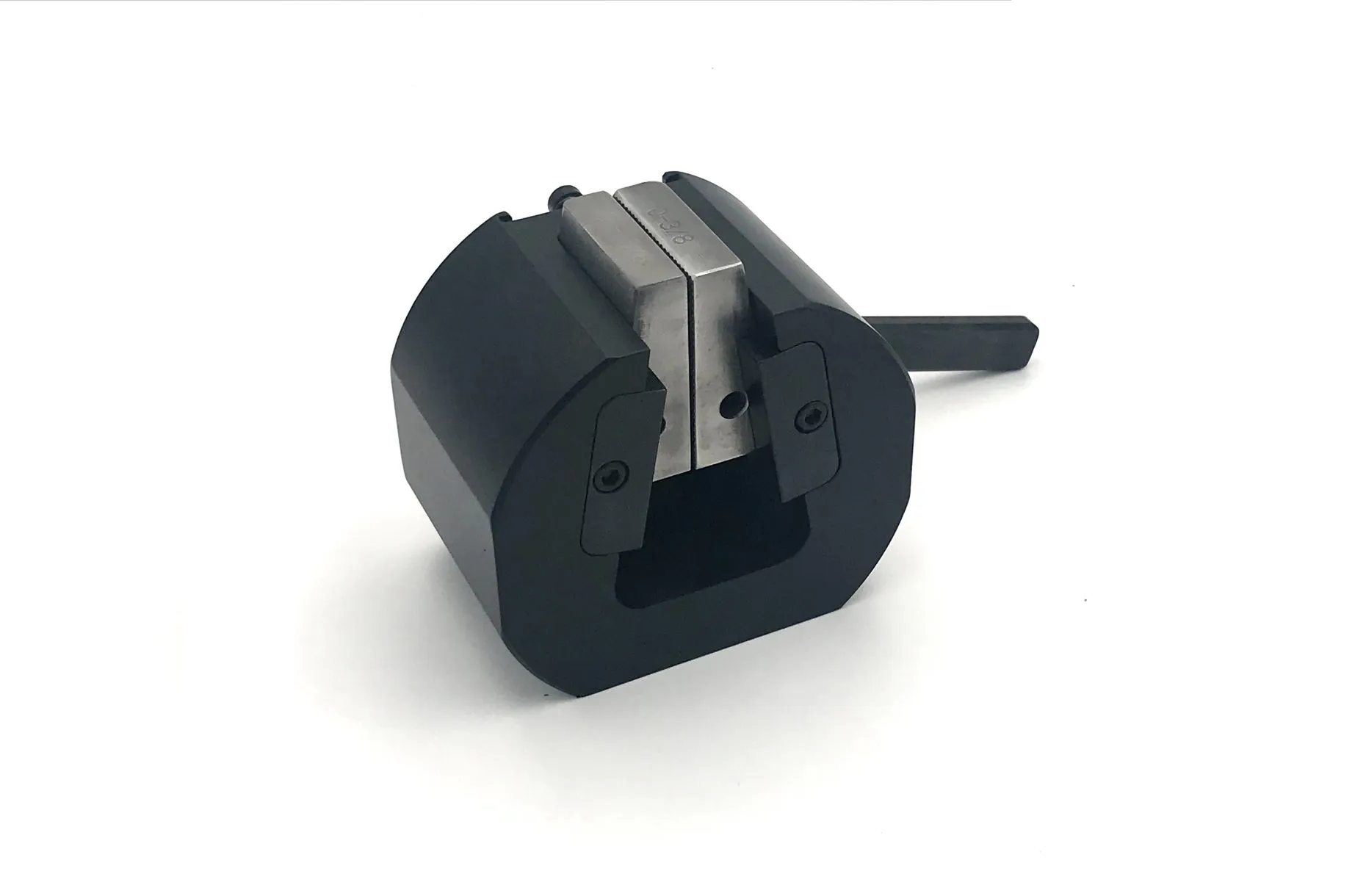

A-30 Wedge Grips

The A-30, lever action wedge grips are ideal for tensile testing flat or round samples.

SKU: A-30 Wedge Grips

Materials: AdhesiveAluminumCompositesElastomersFilmFoamMetalsPlastics and PolymersRubberSteelTextileTimberWood

Lever Action wedge grips are used for medium to high capacity tensile testing applications.
The A-series family of products consist of several models including A-01-2.5KN, A-01-20KN, A-20, A-30 and A-60 models
Models are selected based on capacity requirements, sample width or diamater.

A-30 Grips:
Max Capacity: 150 kN
Jaw Width: 2″ (25 mm)
Max Jaw Opening: 3/4″ (19 mm)
Jaw inserts are selected based on sample dimensions (width and thickness) and shape (flat or round)
A-30W grips open wider and can test flat samples up to 47 mm think and round samples up to 44 mm diamater.

United_Grips_Fixtures_050219-27.pdf

Description

Part Number:  A-30

Spec:  Set of two grip bodies with 1 inch Wide Jaw Faces

Capacity (kN):  150

Capacity (Lbf):  33,000

Inserts:  Available Separately

Inserts required:  based on sample thickness or diameter

Flat Inserts:  A-30-11, A-30-12

Round Inserts:  A-30-13, A-30-14, A-30-15, A-30-16
