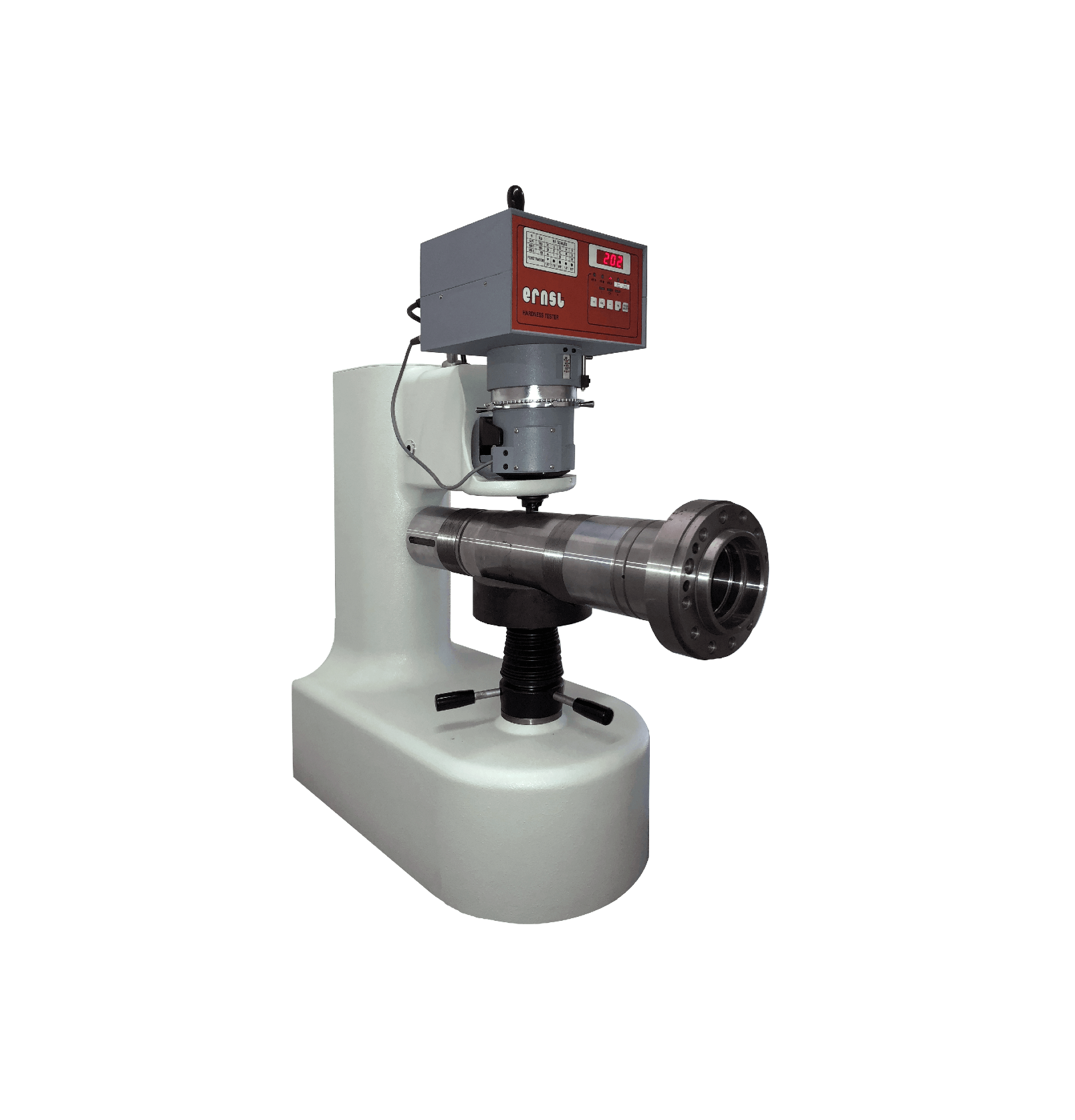

Bench hardness tester AT130
Operating according to the Rockwell principle (ASTM E-18 – ISO6508) the AT130D series, is not influenced by deflections. The reference point for the measurements is the surface of the component itself. Surface preparation is needed only where the indentation takes place. With an easy actuation of the lever, the preload and load are applied. With the return movement, the additional load is removed, and the hardness is calculated. The complete test takes no more than 3 seconds (a few seconds longer for very soft materials).
Description
| Power supply | 115VAC or 230VAC |
| Loads | MOD R: Rockwell 60kgf (N588.40) – 100kgf (N980.70) – 150kgf (N1471) Brinell 62.5kgf (N612.90) – 125kgf (N1226) – 187.5kgf (N1839) MOD SR: Rockwell 15kgf (N147) – 30kgf (N294) – 45kgf (N441) Brinell 62.5kgf (N612.90) |
| Norms and certifications | Rockwell – ASTM E-18 – ISO6508 |
| Minimum measurable diameter | 6mm Rockwell | 4mm Rockwell superficiale |
| Overall dimensions | AT130DNX 30cm x 60cm x h73cm AT130DTX 30cm x 60cm x h95cm AT130DCAR 95cm x 33cm x h133cm AT130DMUR 30cm x 70cm x h110cm |
| Working area dimensions | STAND TX: max. measurable height: 240mm (400mm w/o elevating screw) depth: 225mm STAND NX: max. measurable height: 210mm / depth: 240mm |
| Selectable functions | scales, tolerances, calibration |
| Warranty | 12 mesi |
| Output interfaces | RS232 |
| Reading | on display |
| Load application method | manual with automatic preload application |
| Weight | AT130DNX 95kg – AT130DTX 125kg – AT130DCAR 165kg – AT130DMUR 115kg |
| Preload | MOD DR: 10kgf (98.1N) MOD DSR: 3kgf |
| Working principle | MOD DR: Rockwell MOD DSR: Superficial Rockwell |
| Standard scales | MOD DR: Rockwell: HRA, HRB, HRC, HRD, HRF, HRG Brinell: HB30 other scales on request MOD DSR: Rockwell: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T other scales on request |
| Load time | selectable |
